Technology: Daylight Polymer Printing
Build Volume: 510 x 280 x 350 mm 20 x 11 x 13.8 in
Dimensions: 850 × 650 × 950 mm 33.4 × 25.6 × 37.4 in
Weight: 100 Kg (220 Lbs)
LCD specification: 23.8” (3840×2160 px)
XY Pixel Density: 137 microns
Layer resolution: 25, 50, 100, 150, 200 microns 0.001, 0.002, 0.004, 0.006, 0.008 inches
Cure Speed: (at 100 micron and dependant on resin) 3-8 sec/layer
Connectivity: USB, Wireless, Ethernet.
Power: requirements 100–240 V, UK/USA/EU plug
Software: Photocentric Studio

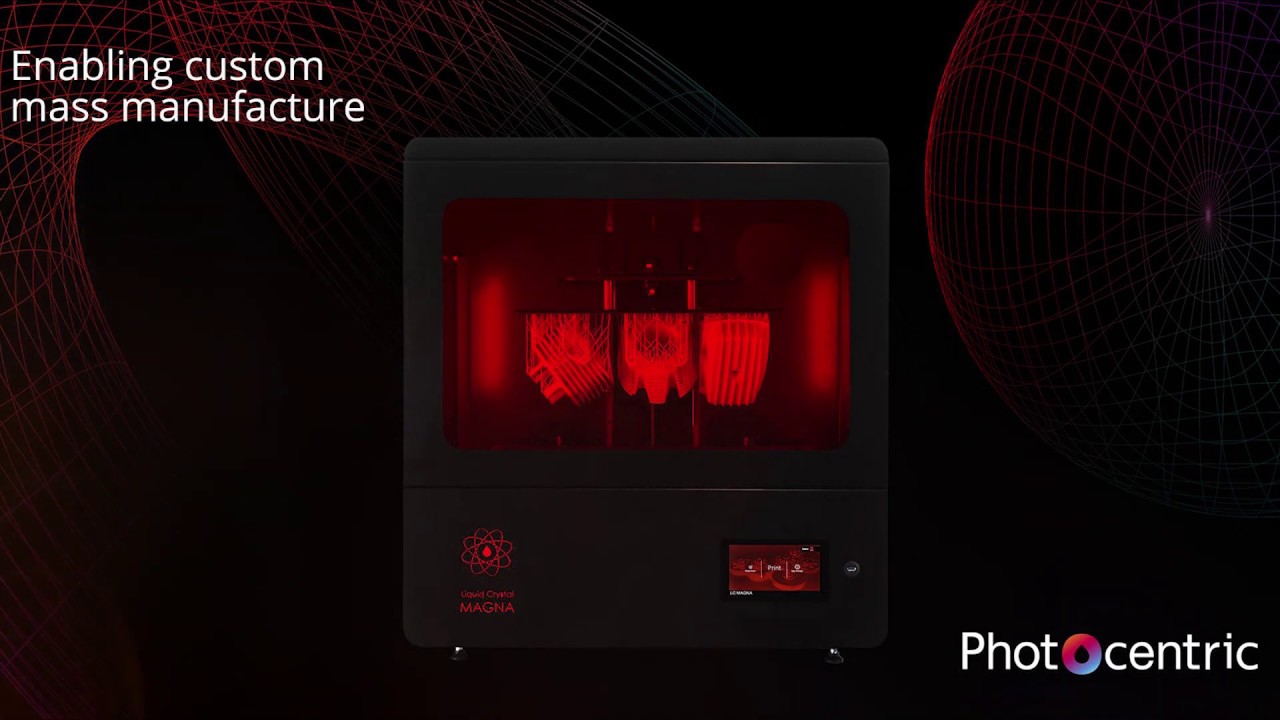

Revolutionise your custom mass manufacturing with the LC Magna’s breath takingly large platform design, maximise your 3D potential with the LC Magna at your disposal. Build Volume 510 (W) X 280 (D) X 350 (H) mm.
Liquid Crystal Display
LC Magna’s 4K Ultra HD screen offers unparralled precision and detail for high resolution mass manufactured prints. Turn mass manufacturing on its head with the LC Magna’s rapid cure times of just 3-8 seconds (dependent on resin). These unbelievably fast times will provide a disruptive change to the custom mass manufacturing of every industry.
Simple and easy to use Vat
The LC Magna vat offers countless features that will make your experience simpler. The built in handles, easy pour spouts and depth gauge all help you to say goodbye to wastage and make the most out of your resin.
Performance and Engineering
The LC Magna is a pristine tool that is built to last, the robust linear rail and patented peeling system is stress tested to withstand the solid printing of 15kg of resin. With state-of-the-art electronics throughout, the LC Magna is designed to perform flawlessly every time to maintain a consistent level of custom mass manufacturing for every industry.
Sleek, smooth and stylish – with an interactive user
interface the LC Magna makes printing simplified. To make the process even more user friendly there are three different methods of data transfer: Wi-Fi, Ethernet and USB.
Dental- 46 Dental Arches, in 2 hours
Revolutionise your dental production line with the mass
manufacturing capabilities of LC Magna, with the ability to deliver 100% of scanned models to an accuracy of less than 100 microns this game changer has something for every industry. With this next generation 3D printer at your
disposal you can produce anywhere from 46 to 80+ models in one print!
Custom Mass Manufacture

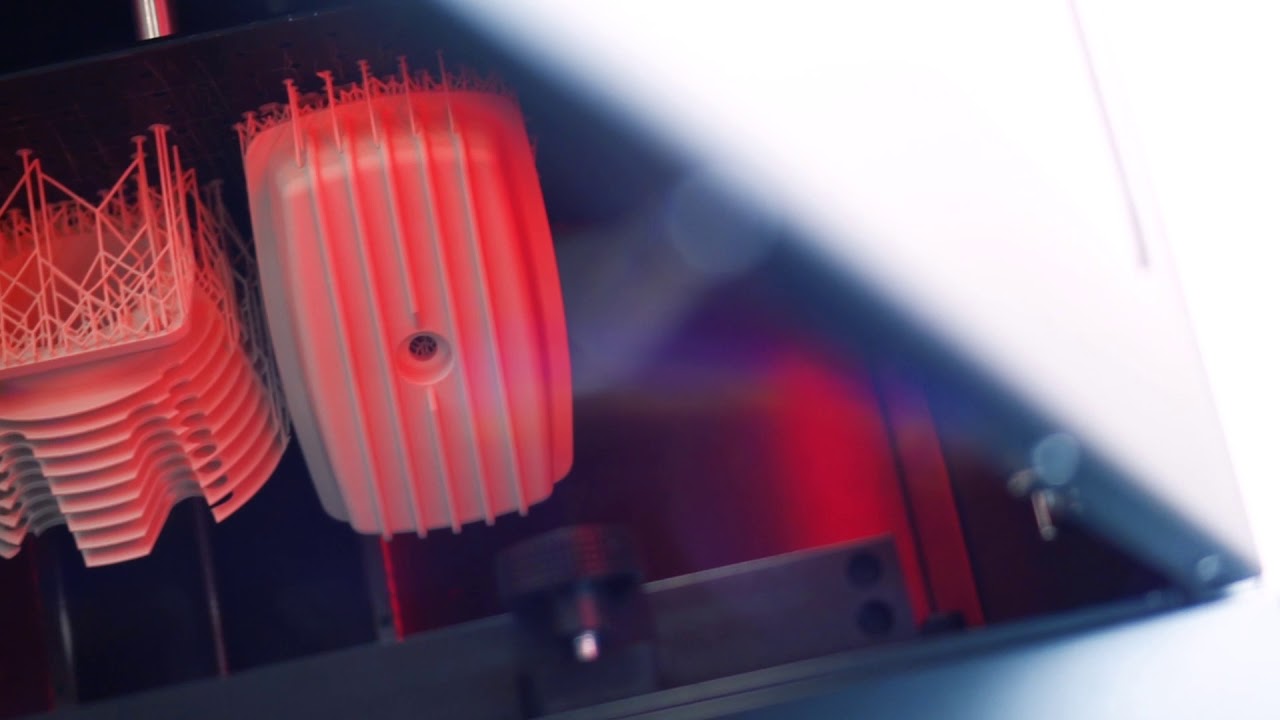

Enable your custom mass manufacturing potential now by utilising the LC Magna’s monstrous build volume, with the ability to print a vast selection of functional parts in record time the LC Magna will remove the delays caused by
traditional tooling and enable the ability for continuous custom mass manufacturing.
Modelling- High Detail Production
Conceptualise and revolutionise your 3D printing
capabilities with the combination of LC Magna and Concept Green resin – this dynamic combination not only removes the need for messy silicone moulds but also showcases an
impressive ability to bring to life 36 intricate models that offer details to rival even the smallest of desktop printers.
Engineering- With LC Magna, size does not
Create prototypes in a wide selection of sizes at resolutions ranging from 25um to 200um without the need to compromise on depth or detail. Providing industries with the ability to prototype parts small and large alike at an affordable price point, the LC Magna has a firm place in every industry.
Transform your industry with high-grade LC Magna resins
With an array of high-grade resins at your disposal the LC Magna has the ability to revolutionise every industry laying the path for truly innovative custom mass
